50 Pack 1/2” Overlay 3D Soft Close Hinges for Face Frame Kitchen Cabinet, 3 Way Adjustability, Quiet Self-Closing Door, 105 Degree
Original price was: $68.99.$51.99Current price is: $51.99.
[
Product Description
About STIANC
Install your cabinets with STIANC cabinet hinges, and you will get the right durable product for your project, and a Brand name you can trust. STIANC will always have you covered with unbeatable hardware for all types of your projects. All our hinges have SGS certification.
3D Adjustments for easy adjustment Quiet & Soft Closing with Built-in Damper 3D Structure

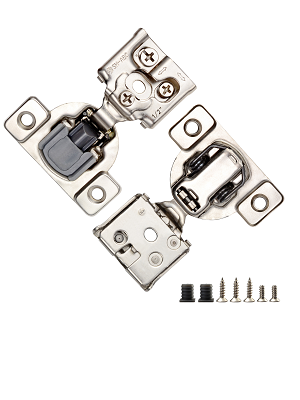

1/2 Inch Overlay Cabinet Hinge

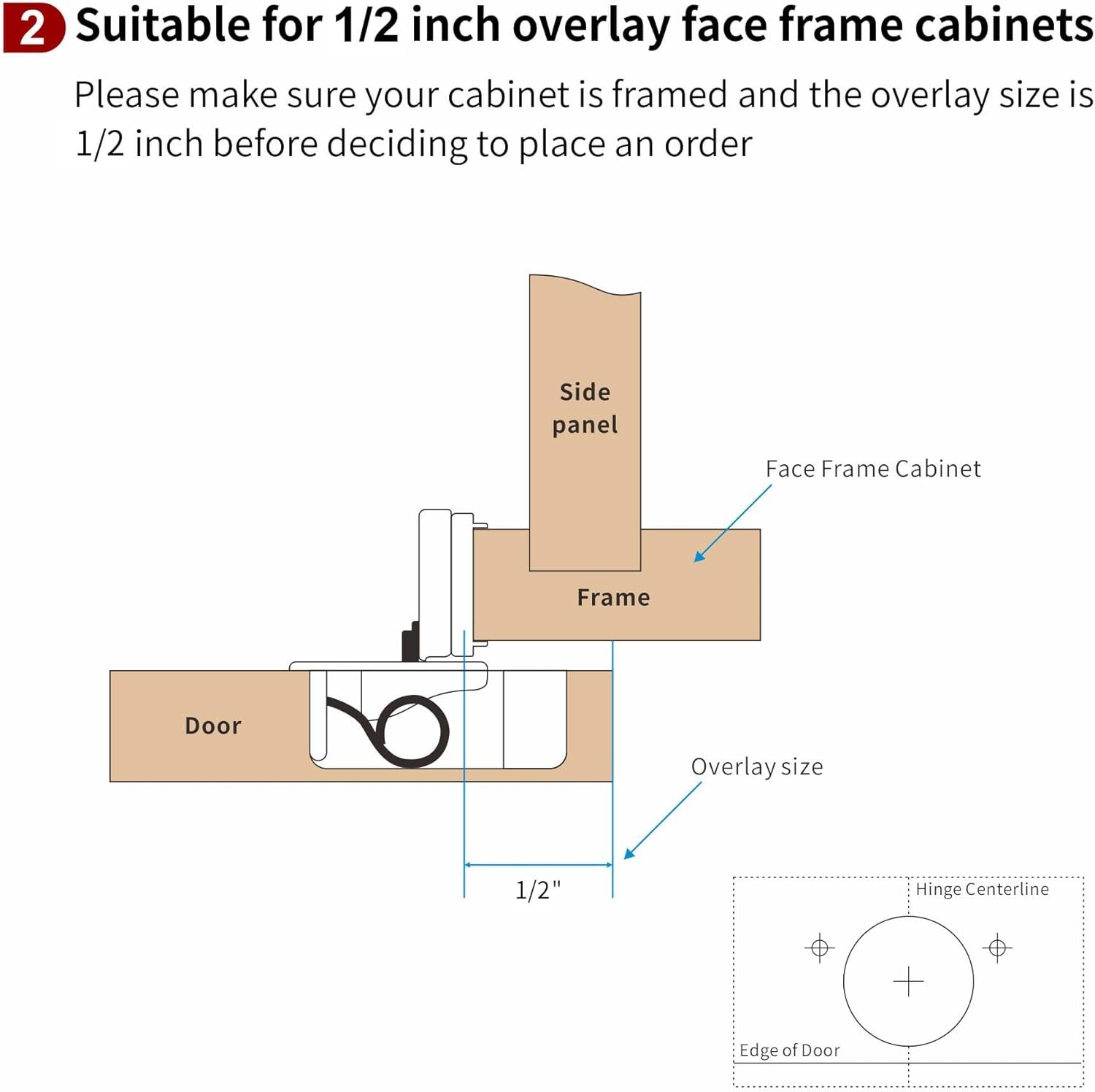

Suitable for face frame cabinets
STIANC cabinet hinges slowly pulls the door closed with a smooth silent motion and prevent doors from slamming. Use the sturdy, durable and reliable hinge provided by STIANC to make your life better!
Cabinet Type: Face Frame Opening Angle: 105° Hinge Cup Diameter: 35mm(1-2/5”) Hinge Cup Depth: 11.8mm(12/25″) Screw Hole Distance: 45mm(1-4/5”) Overlay: 1/2 inch overlay Range of Door Thickness:14-26mm Mounting type: Screw-on or with dowels
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars 748
4.5 out of 5 stars 999
4.5 out of 5 stars 748
4.5 out of 5 stars 999
Opening Degree
105 Degree 105 Degree 105 Degree 105 Degree
Cup Diameter
35mm 35mm 35mm 35mm
Cabinets Application
Face Frame Face Frame Face Frame Frameless/Face Frame
Overlay Options
1/2″, 3/4″ Overlay 3/8″,1/2″,5/8″, 3/4″, 1-1/4″, 1″, 1-1/2″, 1-3/8″ Overlay 1/2″, 1-1/4″ Overlay Full Overlay
Soft Closing
✓
✓
✓
✓
Adjustable Closing Speed
no data
no data
✓
no data

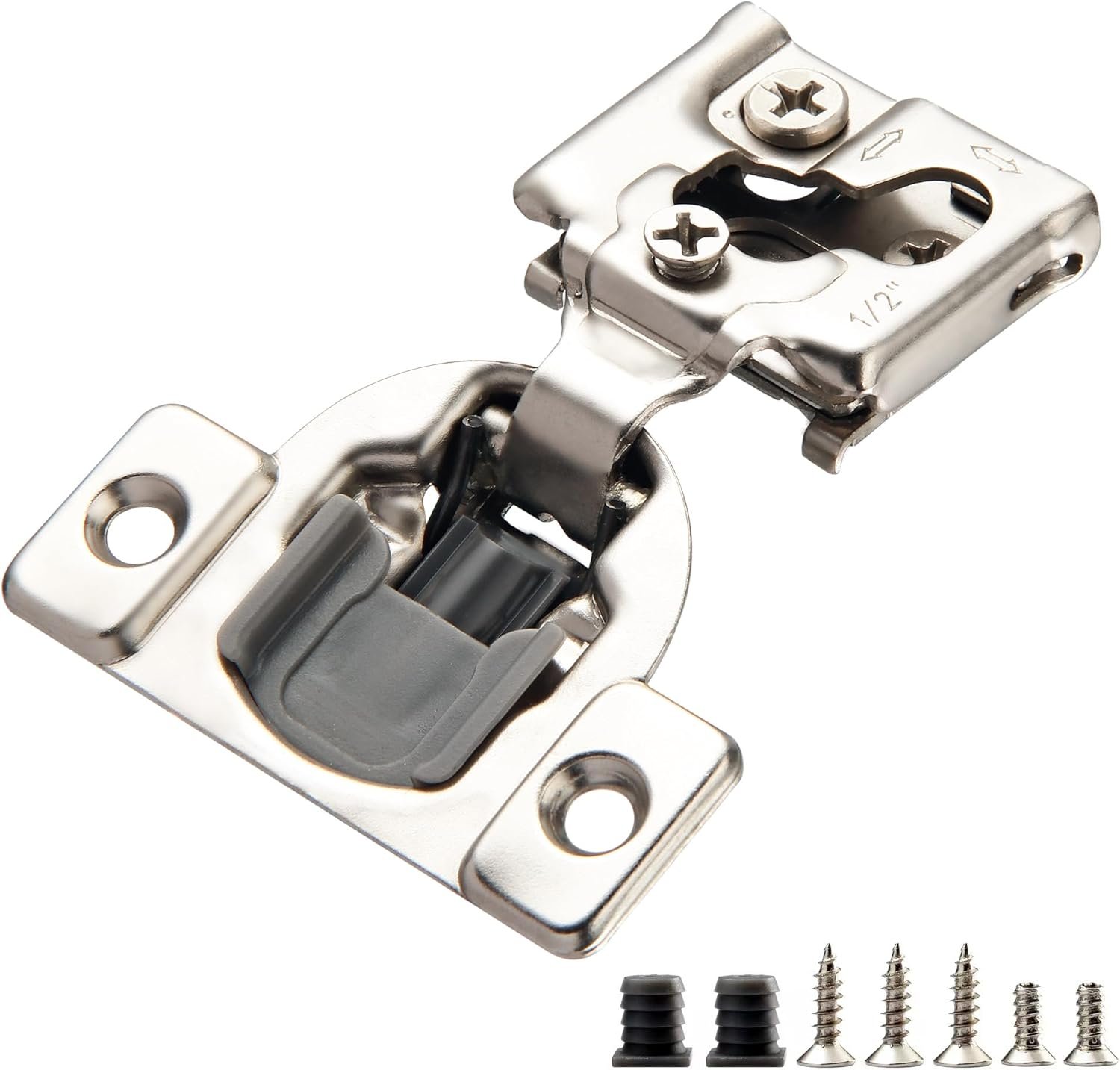

1/2 inch overlay 105 degree face frame concealed hinges

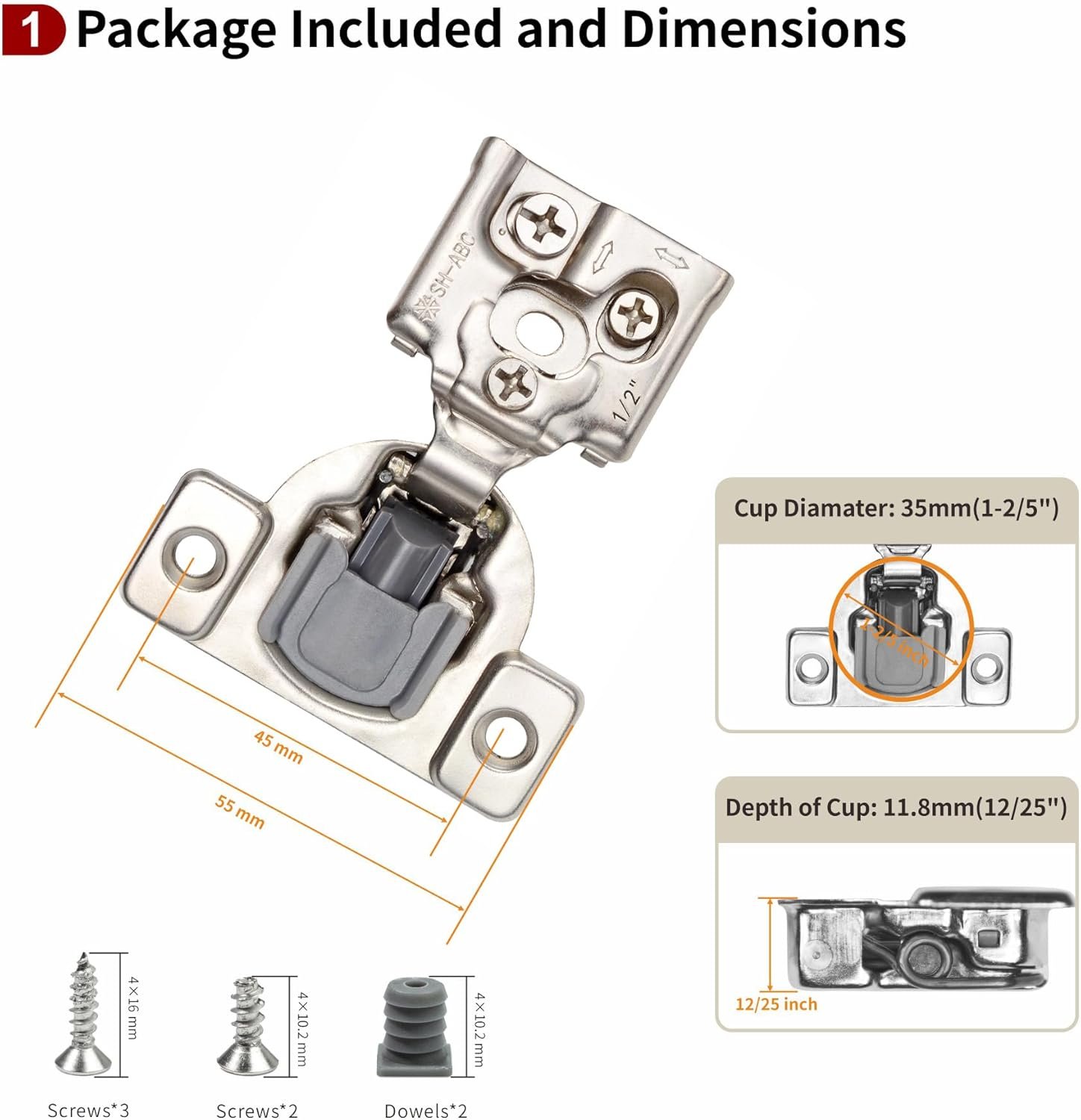

Hing Cup diameter: 35mm, Cup depth: 11.8mm, Screw holes distance: 45mm

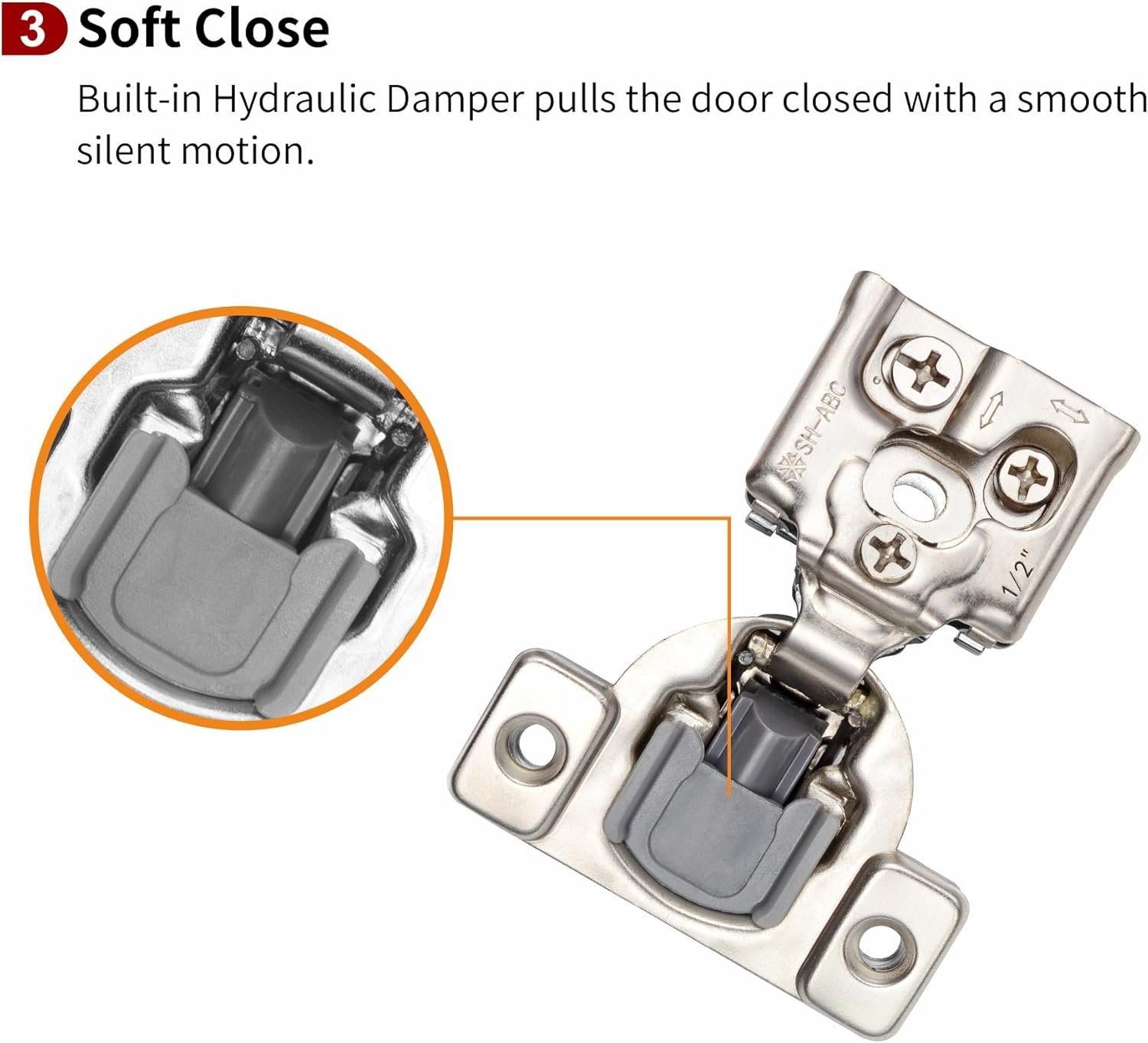

Soft Close with built-in Damper mechanism slowly pulls the door closed with a smooth silent motion

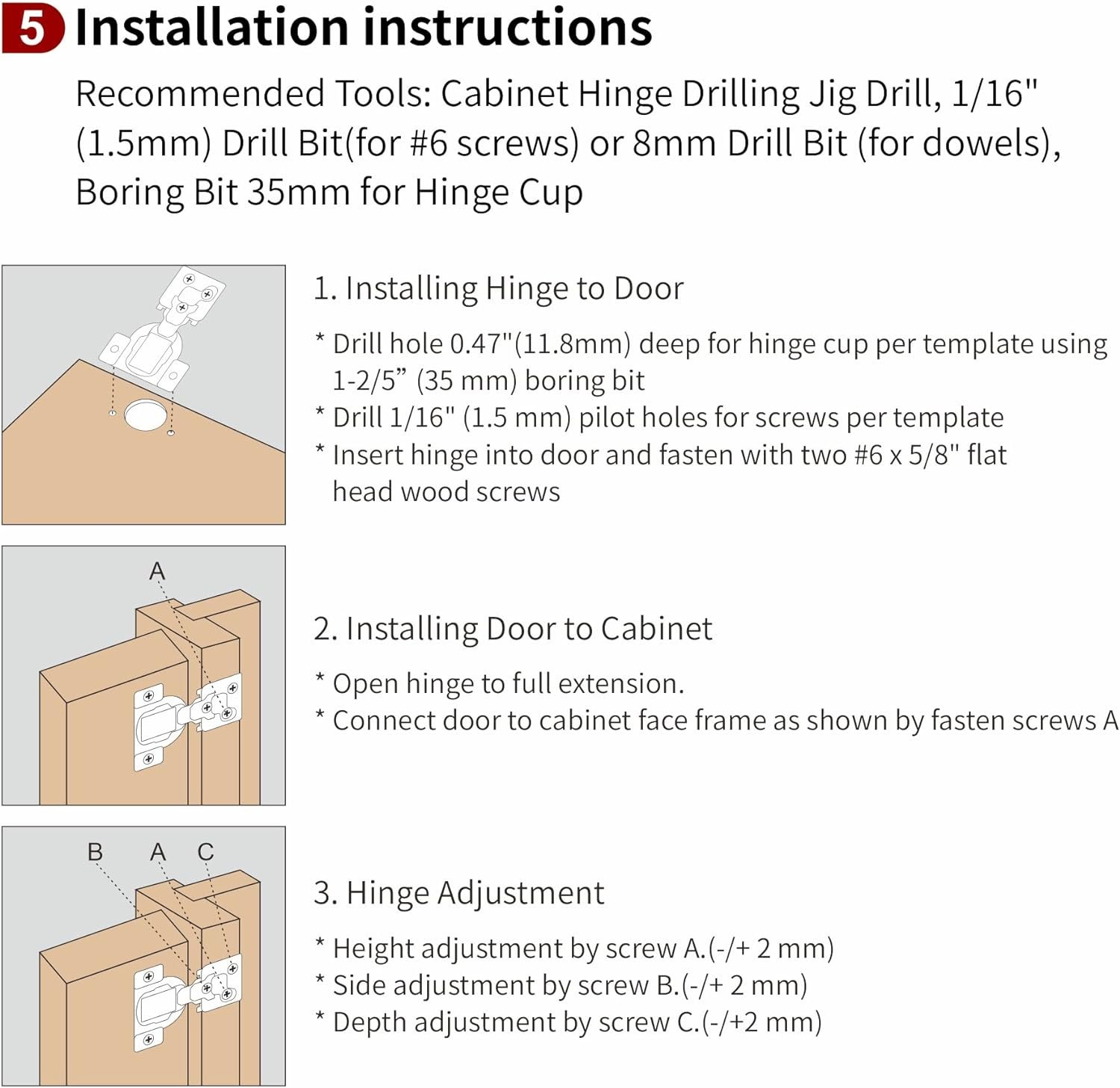

3D adjustment makes installation easy
Made of cold rolled steel with nickel plated surface, HIGH STRENGTH and anti-corrosion in the various environments
50 Pack hinges come with dowels and matching screws
Customers say
Customers find these hinges work well and are easy to install, with good adjustability and soft-close functionality. They fit perfectly in original holes and serve as direct replacements, with one customer noting they match KraftMaid cabinet hinges. While some customers describe them as very strong, others wish they were better-made, though customers generally consider them a great value.
