50 Pack 1/2″ Overlay 3D Soft Close Concealed Hinge for Face Frame Door, Smooth Slow Self Closing Hinges, Satin Nickel, Hidden 105° Open Angle Stainless Steel Hinge for Kitchen Cabinet Door

[
Product Description

Why choose Chibery’s hinges?

✔ Mature product supply chains

1. Chibery has a mature and professional hinge supply chain, our mission is to always put the user experience first, be product-centric, and constantly optimize the sense of use and cost performance of our products.

2. Chibery hinges have been sold to many countries around the world for sale. We highly value the voice of our customers. We also want to bring our American customers cost-effective products, unparalleled quality, and the most personalized service!

✔ Exquisite Craftsmanship & Sturdy Quality

1. Chibery face frames soft close cabinet hinges provide long-lasting durability, 3D adjustable construction, and soft close dampers that support slow closure at small angles, even the roughest kitchens or bathrooms can be durable.

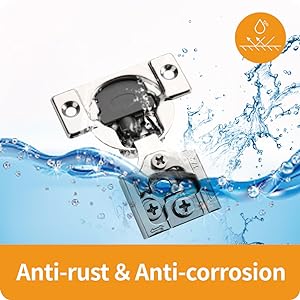

2. Heavy-duty steel surface treatment, double layers electroplating finish, durable, and strong rust prevention capacity (past 48 hours salt spray test).

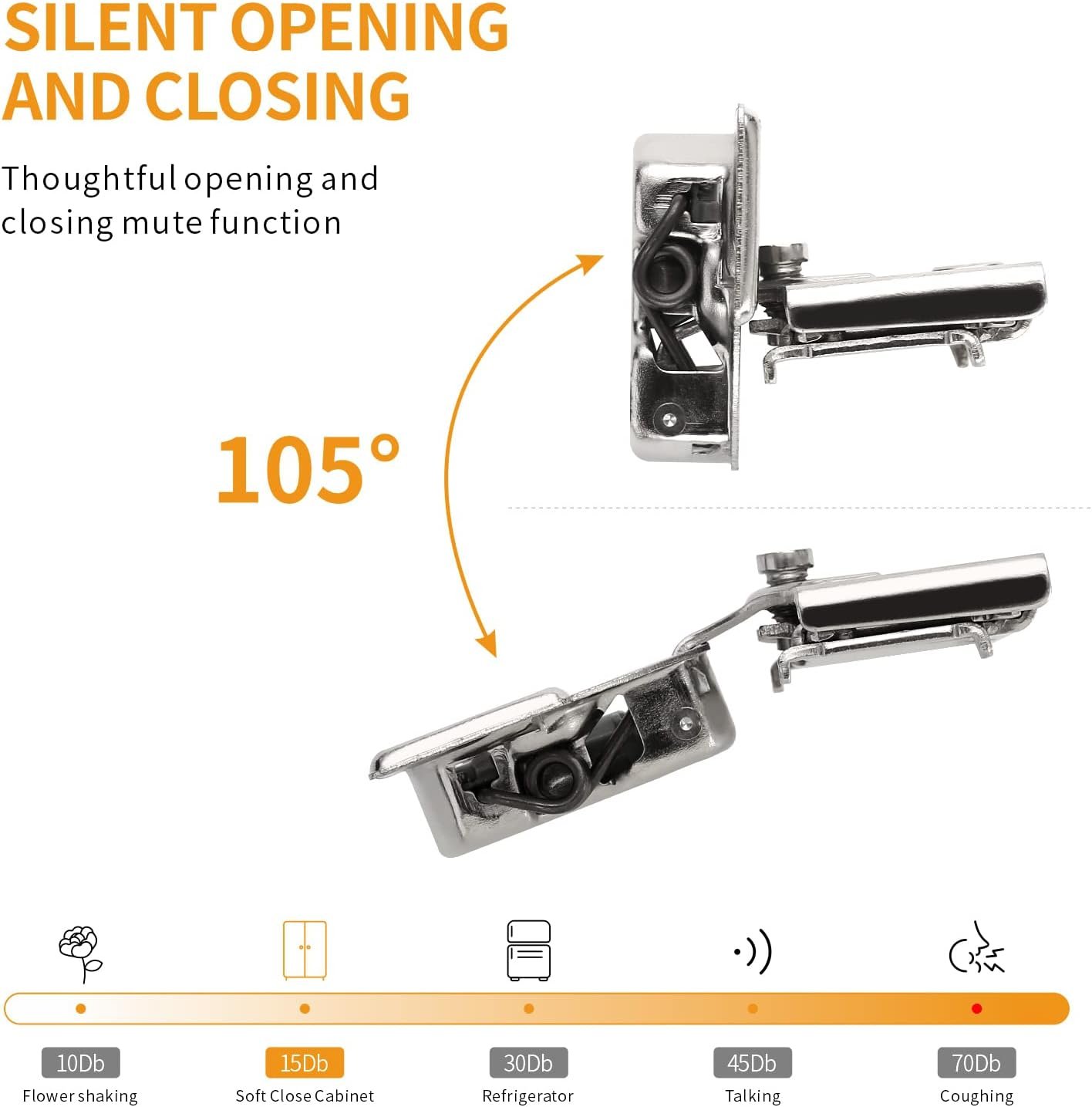

3. Silent opening and closing

✔ Wide range of applications

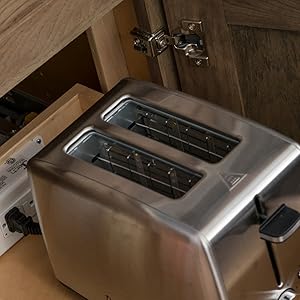

It’s useful for kitchen cabinet doors, wardrobe, tv cabinets, bookcases, wine, and other luxury door connections.

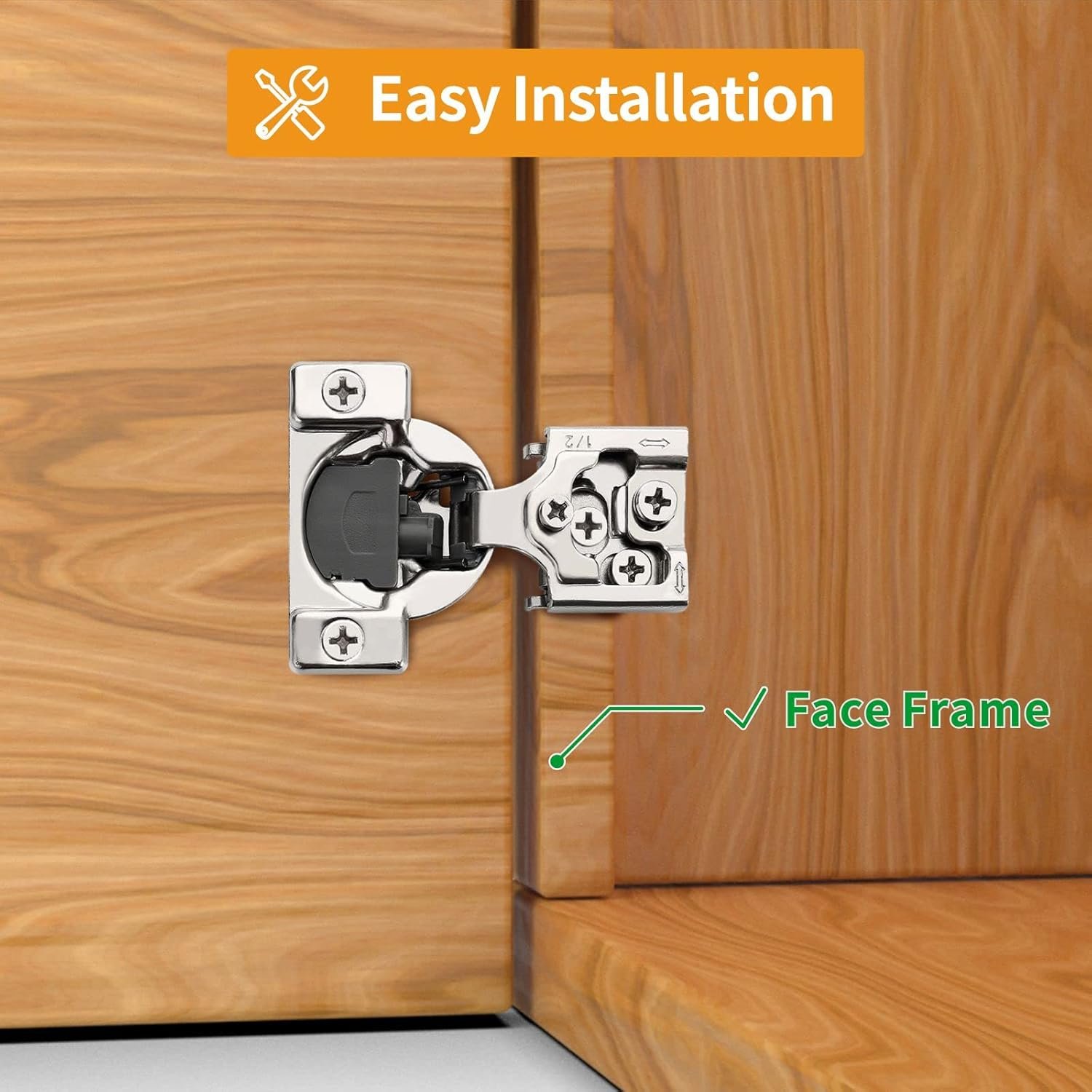

✔ Easy to install

There is no assembly required. All mounting hardware needed for installation is included in the package, just install the hinges through the holes into the cabinet doors and side panel, and fine-tune with 3D adjustment. Very quick and easy installation.

Installation Notes

Installing Hinge to Door

Drill hole of 1/2″(12.7mm) deep for hinge cup pertemplate using 1-2/5″(35mm) boring bit. Note: Do not drill through the door.Drill 1/16(1.5mm) pilot holes for the hinge.Insert the hinge into the door and fasten it with flat head wood screws.

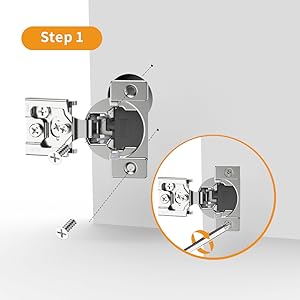

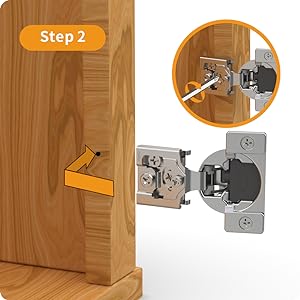

Installing Door to Cabinet

Open hinge to full extension.Connect door to side panel as shown by fasting Screws A.

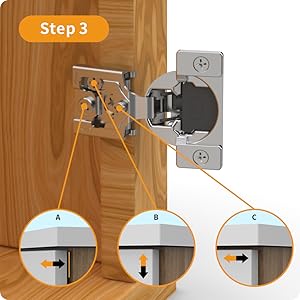

3D Adjustment Structure

Adjust Up and Down by screw A(+/- 2mm)Adjust Left and Right by screw B(+/- 2mm)Adjust Front and Back by screw C(+/- 3mm)

Advantage:

3D Adjustment, just turn the screw, and you can adjust the hinge positionSelf-soft closing design with built-in POM Damper, which not only provides buffering but also supports small soft close angles.Silent open and close, provide a comfortable home environmentHeavy-duty stainless steel surface treatment, more durable

Specification:

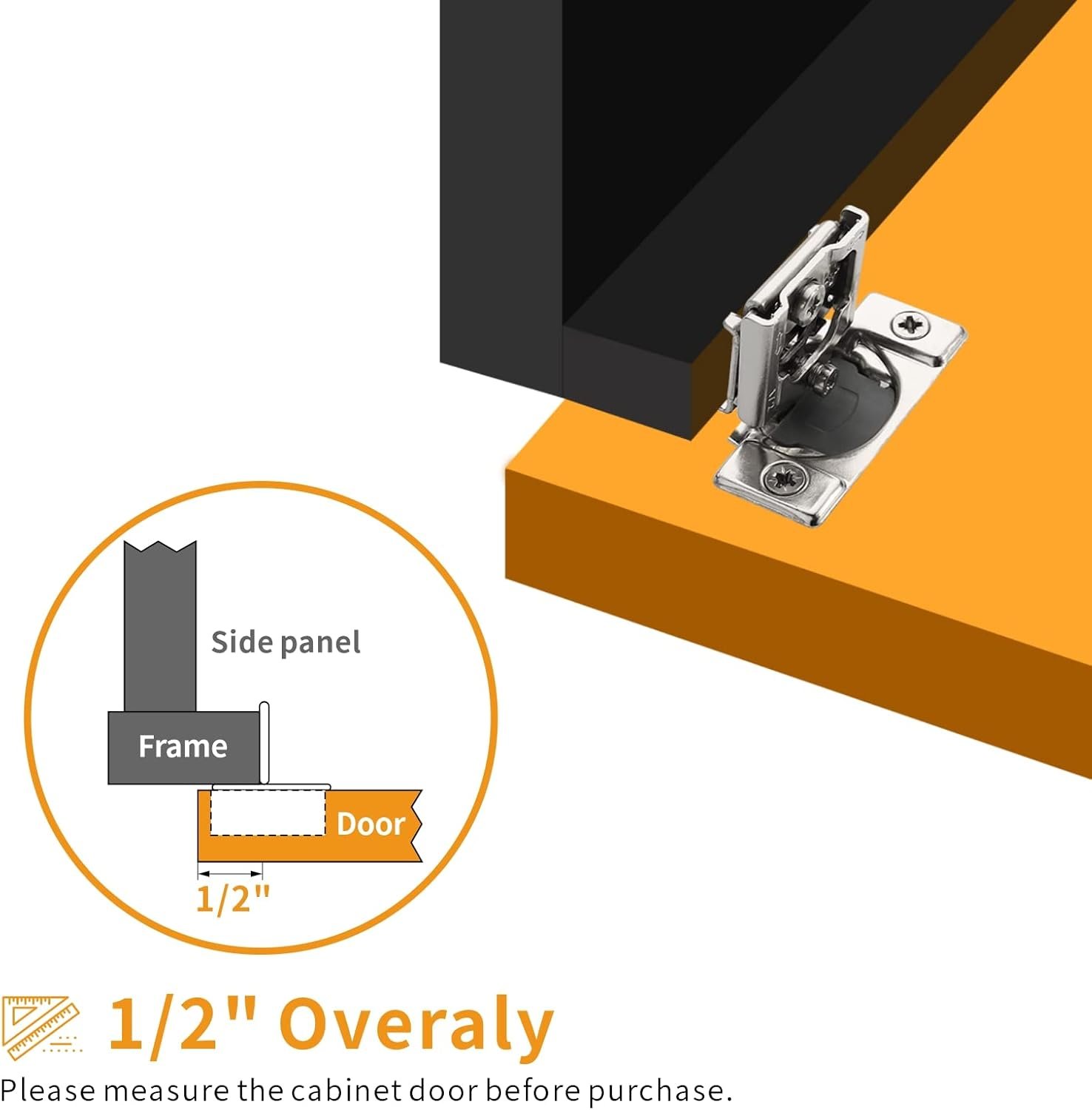

Size 1/2 inch Overlay, 3/4 inch Overlay, 1-1/4 inch Overlay, 3/8 inch Overlay, 5/8 inch Overlay, 1 inch Overlay, 1-1/2 inch Overlay, 1-3/8 inch Overlay, 1-5/16 inch Overlay Number of Items 2 pack, 10 pack, 20 pack, 30 pack, 50 pack(includes Pre-installed Dowels and Screws) Opening Angle 105° Hinge Cup Diameter 35mm (1-2/5″) Hinge Cup Depth 11.5mm (2/5″) Screw Hole Distance 45mm (1-4/5″) Drilling Distance On Door(K) 3-6mm(3/25″~6/25″) Range Of Door Thickness 14-26mm(11/20″~1″)

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.6 out of 5 stars 1,230

4.7 out of 5 stars 1,091

4.6 out of 5 stars 665

4.5 out of 5 stars 277

4.6 out of 5 stars 1,230

4.5 out of 5 stars 277

Price

$13.99$13.99 $8.99$8.99 $32.55$32.55 $28.99$28.99 $19.99$19.99 $28.99$28.99

Open Angle
135 ° 105 ° 105 ° 105 ° 165 ° 90 °

Material
Nickel, Steel Nickel, Steel Nickel, Steel Nickel, Steel Nickel, Steel Nickel, Steel

Cabinets Application
Corner Cabinets Face Frame Cabinets Face Frame Cabinets Frameless Cabinets Face Frame Cabinets Frameless Cabinets

Overlay Options
/ 1/2″, 3/4″, 1-1/4″, 1″, 1-1/2″, 1-3/8″, 1-5/16″ Overlay 1/2″, 3/4″, 1-1/4″, 1″, 1-1/2″, 1-3/8″, 1-5/16″ Overlay Full Overlay, Half Overlay, Inset 3/4″ Full Overlay, Half Overlay, Inset

Package Quantity
2 Pack 2, 10, 20, 30, 50 Pack 2, 10, 20, 30, 50 Pack 10, 20, 50 Pack 2 Pack 4, 10, 20 50 Pack

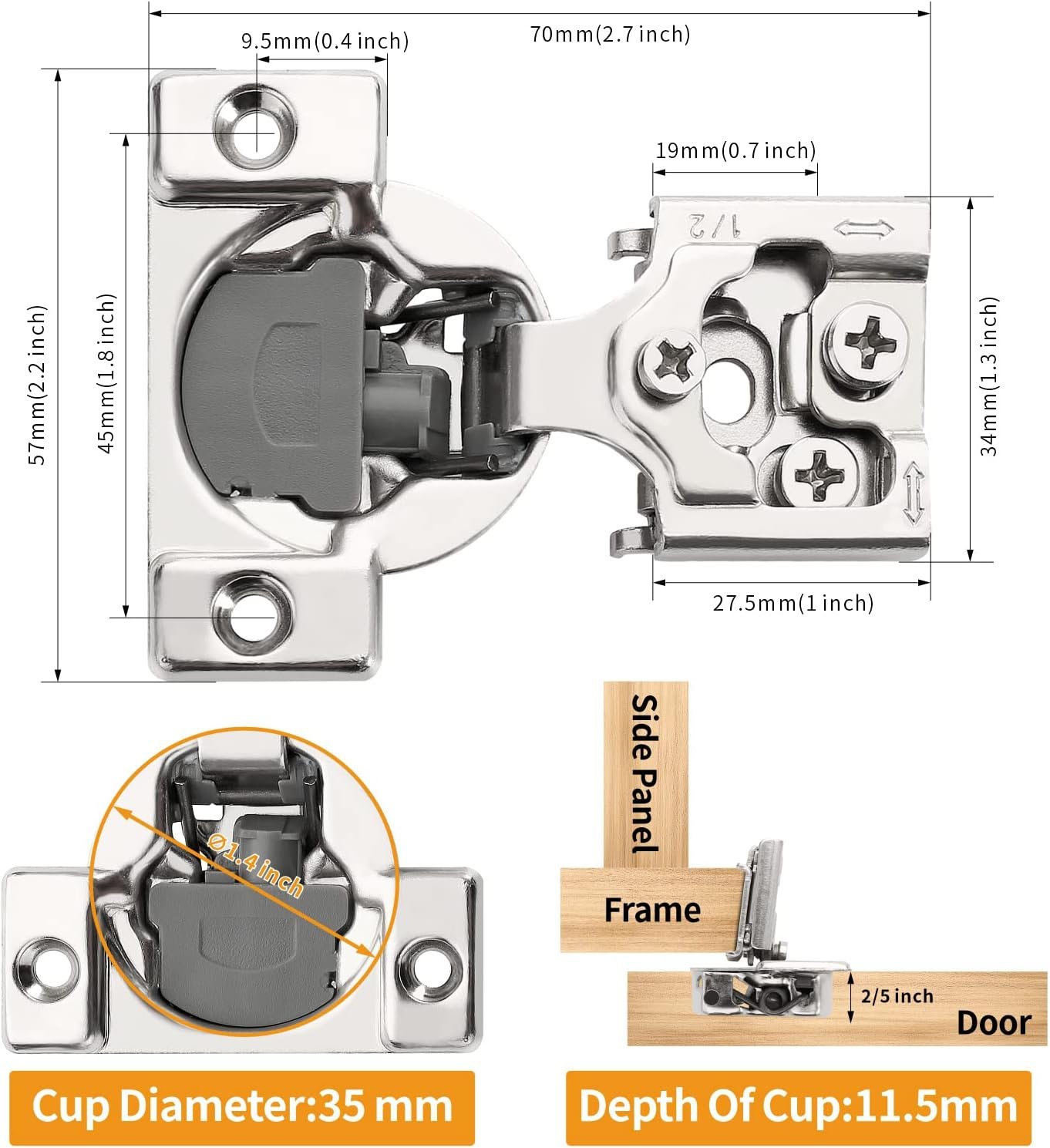

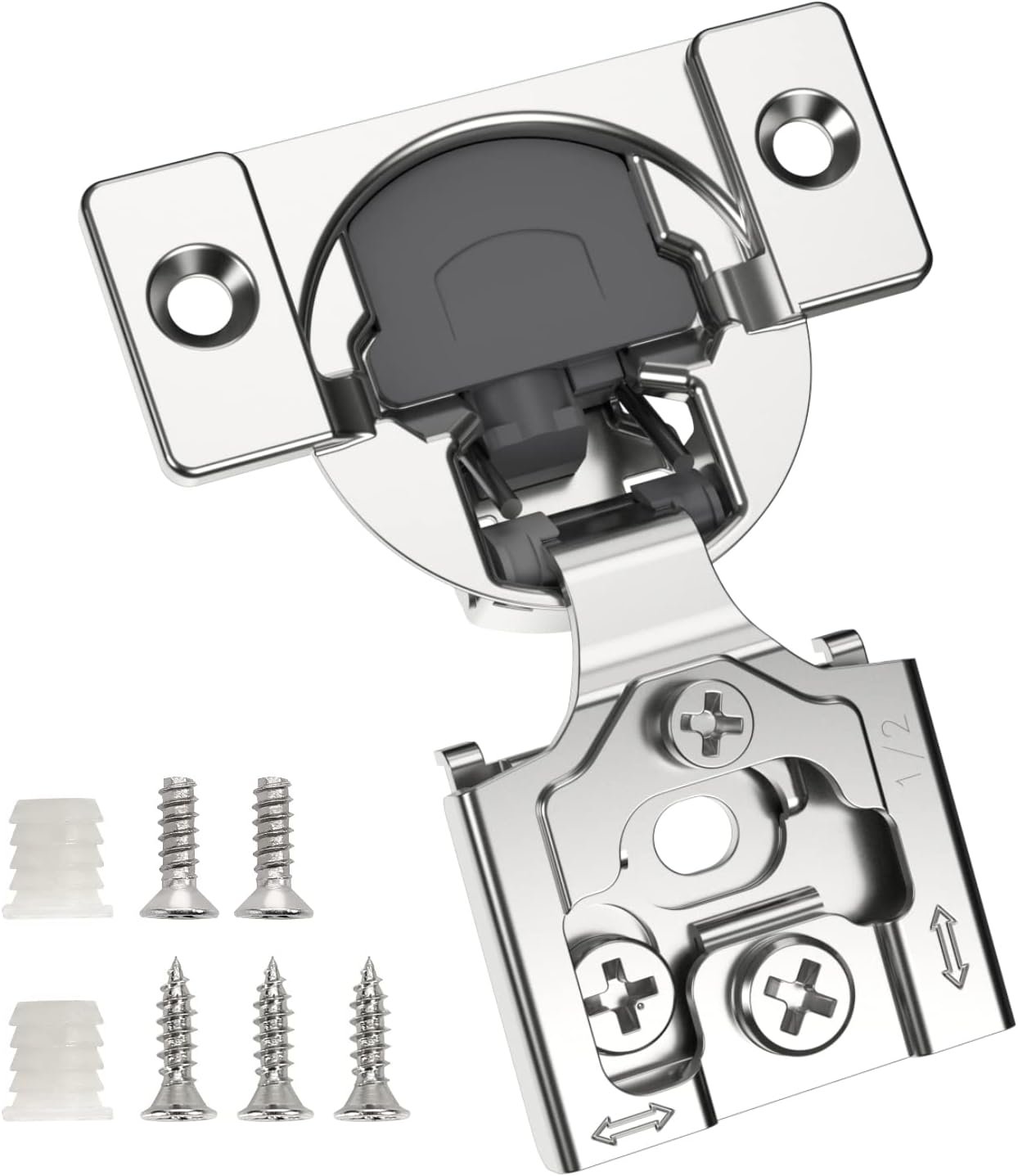

Installation Specification: Cup diameter is 35mm; Cup depth is 11.5mm, Screw holes distance is 45mm; Opening angle is 105 degrees, suitable for most cabinet door styles. Each slow close cabinet hinge comes with 2 easy-on dowels and 3 self-tapping wooden screws to ensure a perfect fit.

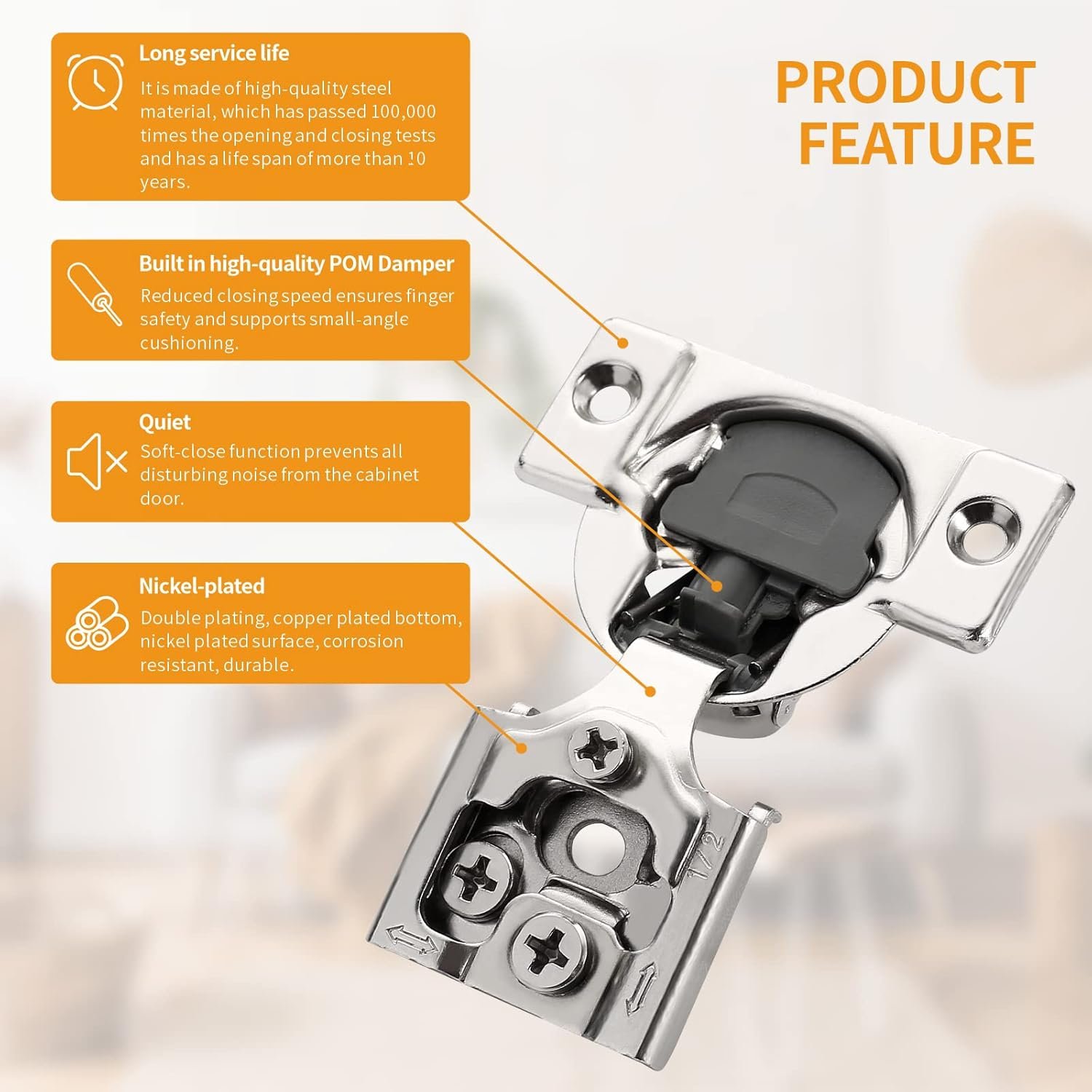

SOFT CLOSE CABINET HINGE: Each overlay concealed cabinet hinge includes a built-in POM damper, Reduced closing speed prevents noises from the kitchen and prolongs the life of doors, cabinets, and hinges. In addition, it also supports ★SMALL SOFT CLOSE ANGLE★, which can better protect your finger.

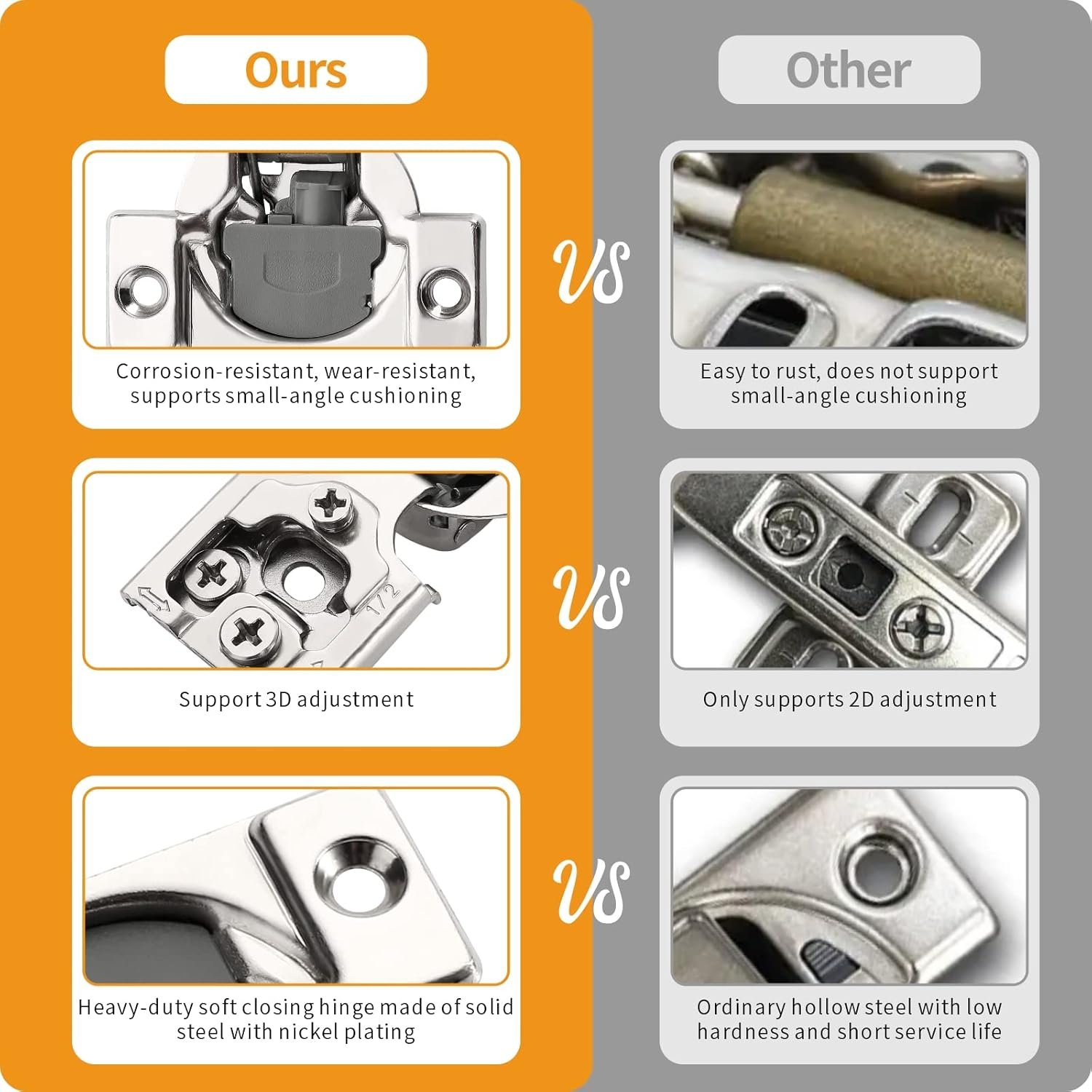

3 Ways Adjustable Upgrade: Superior 3D adjustability allows you to adjust the cabinet door up and down, left and right, back and forth just by turning a screwdriver, this will ensure that your bathroom and kitchen cabinet doors do not sag, and align correctly, open and close smoothly.
Double Electroplated: The material of our overlay cabinet hinges is high quality steel and nickel plated finish and brass plated bottom, durable and perfect for kitchen cabinet doors, wardrobes, and TV cabinets, bookcases, wine cabinets, and other luxury door connections.
Buy with Confidence: Chibery hinges Conform to the standards and certifications of ISO9001, ISO14001, BHMA, KCMA, and SGS. The product can withstand more than 100,000 times of opening and closing and more than 48 hours of salt spray test. If you encounter any problems in the process of use, please feel free to contact us, we will provide the most intimate service.
